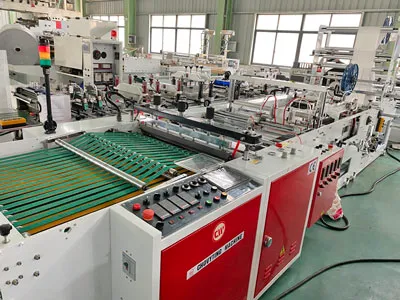

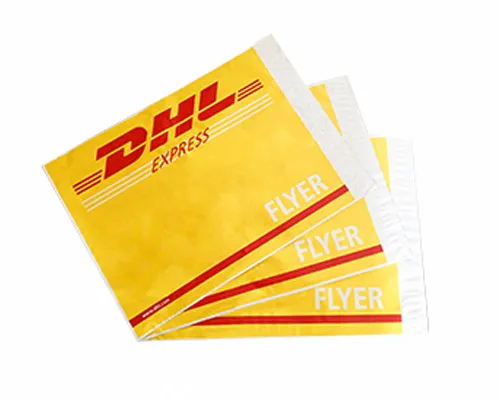

This machine is the high quantity DHL bag making machine,fully automatic design,easy operation.
Main Features

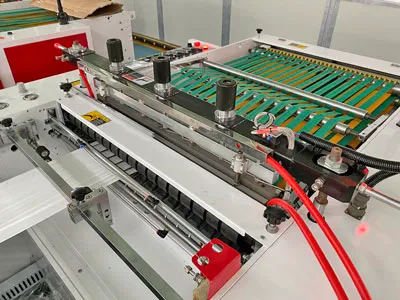

1. Newly design DHL bag with Longitudinal seal knife structure.
2. Newly design side sealing water circulate cooling device
3. With top continuous sealing device
Optional Equipment
1. Bottom seal and double seal knife
2. OPP flower knife
3. Sealing device for producing DHL bag
4. Perforation line device
5. Adhesive tape adding device
|
Model |
CP-800SBD+DHL |
|
Length of bag making (height of bag) |
250-750mm |
|
Width of bag making |
250-600mm |
|
Speed of machine |
DHL bag：90pcs/min |
|
Die cut bag：90pcs/min |
|
|
Top folding |
50-75mm |
|
Bottom gusset |
20-60mm |
|
Total power |
10KW |
|
Machine weight |
2300kg |
|
Machine dimension (LxWxH) |
6500x1600x1870mm |
|
Air compressor |
5HP |
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
