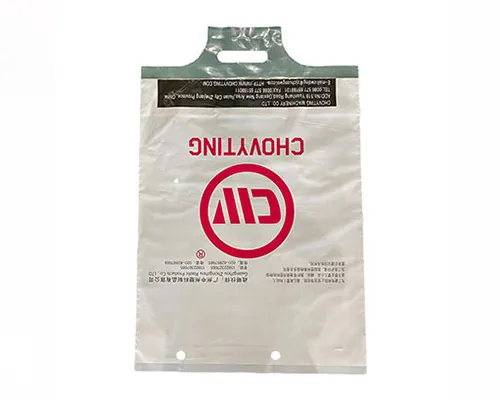

This machine is specially designed for making side hole bag, fully automatic. It shows the best technic of servo motor and the latest type of mechanism structure. In addition, it has the excellent speed of 300pcs/min.
Main Features
1. Special servo motor driving

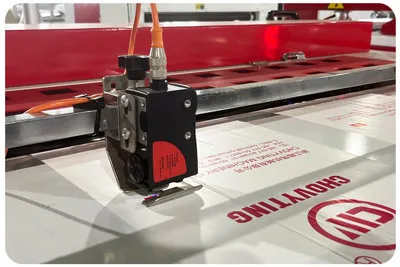

2. With printing tracking photocell use Datalogic, from Italy

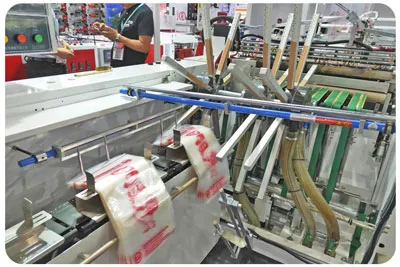

3. Rotary-arms unit for collection of bags

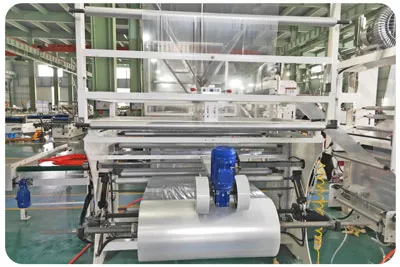

4. Double swing arm dancing, it is suitable for high speed feeding, the film will not shake.
Optional Equipment

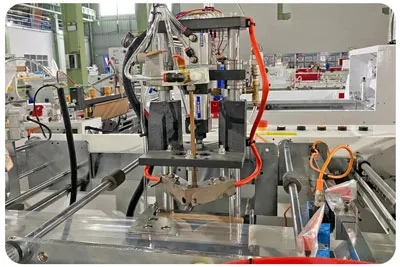

1. Hanger hole puncher device

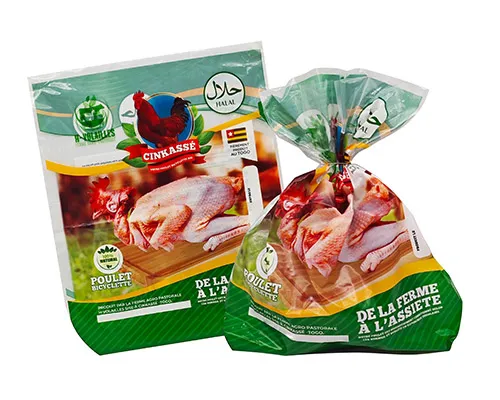

2. Chicken bag puncher device
3. Bottom pre-heat device
| Model | CP-800BFS |
| Length of bag making (height of bag) | 250-700mm |
| Width of bag making | 100-330mm |
| Speed of machine | 300pcs/min |
| Bottom gusset | 30-70mm |
| Total power | 22kW |
| Machine weight | 2600KG |
| Machine dimension (LxWxH) | 8000x2800x1950mm |
| Air compressor | 7.5HP（not including air compressor) |
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
