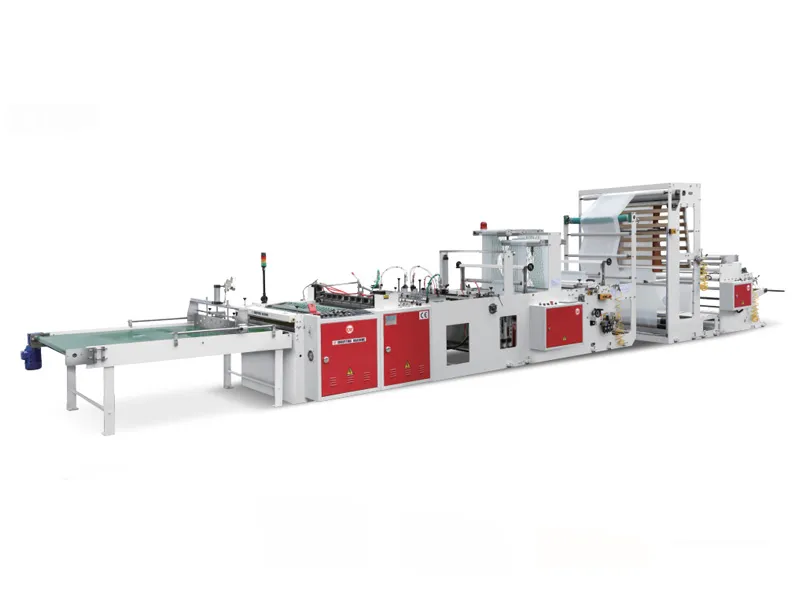

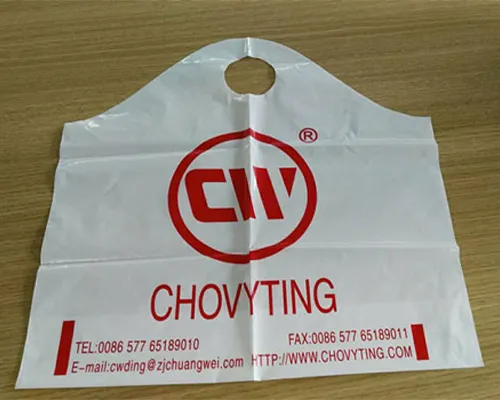

This machine is the high quantity wave top bag making machine,fully automatic design,easy operation.
Main Features

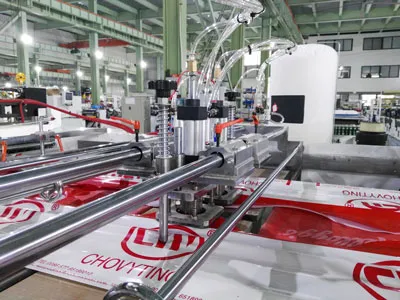

1.Newly design sine wave bag with longitudinal seal knife structure.
2.Newly design side sealing water circulate cooling device.
3.2 wave bag at one time without punching waste comparing with traditional production way
Optional Equipment
Bottom seal and double seal knife.
| Model | CP-1000SW | |

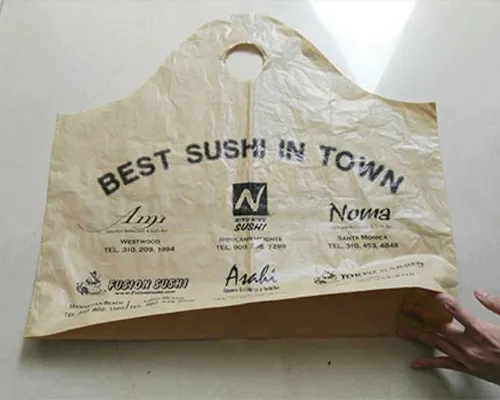

| Bag type | Sine wave bag | Side seal bag |
| Unwind width | 1300mm tubefilm | |
| Unwind dia | Ȼ900mm max. | |
| Bag width | 250-750mm | 100-750mm |
| Bag length | 250-450mm | 250-500mm |
| Sine wave slit height | 50-200mm | |
| Bottom gusset | 30-150mm | |
| Film thickness | HDPE 0.025-0.05mm LDPE 0.035-0.08mm |
|
| Speed of bag making | 100pcs * 2/min | 130pcs * 2/min |
| Line speed | 60M/min | |
| Total power | About 12.2KW | |
| Machine dimension | 8500x2500x2050mm | |
| Machine weight | 3700kg | |
| Air compressor | 6HP (not including air compressor) | |
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
