Three layer cooler bag making machine with new design, with rigid hand sealing device, fully automatic production design, simple operation. The auto rigid hand sealing device can save human cost.
Main Features

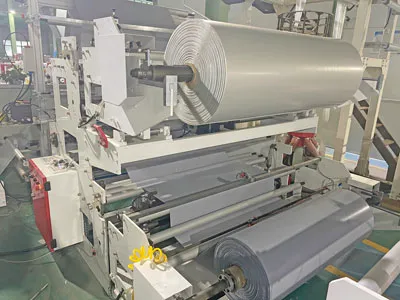

1. Unwinding with automatic tension control.
2. Big diameter roll of dischange rack design,can reduce the downtime.

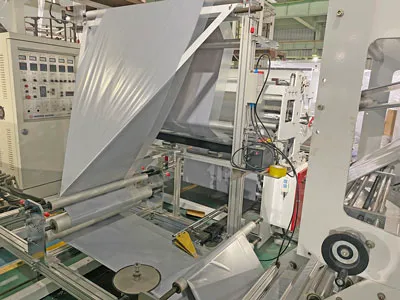

3. Folding device wih special design,to offer the tension of low friction.

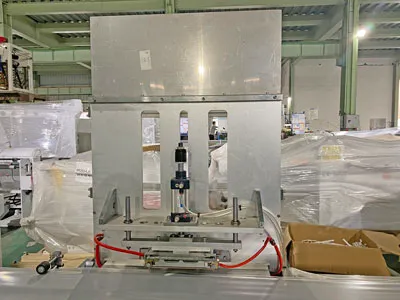

4. Fully automatic handle transport device, advanced design, the size and type of rigid handle can be changed.
5. New design of heavy duty sealing knife, can make the three layers film firmly, with good effect of insulation and cold.
6. Adopt photoelectric from Sick of Germany. Zero fault.
Optional Equipment
1. Punching unit for handle.
| Model | CP-800HCB |
| Length of bag making | 250-650mm |
| Bag width making | 250-600mm |
| Production speed | Cooler bag 70pcs/min Rigid handle bag 50pcs/min |
| Size of rigid handle | 200-450mm |
| Bottom gusset | 40-65mm |
| Total power | 21.3KW |
| Machine weight | 390Okg |
| Machine dimesion | 11000X5200x2130mm |
| Air compressor | 7.5HP |
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
