Application
This machine is suitable for making bopp flower bag, fruit bag and other irregular shape bag
Feature
1. Whole machine computer control with touch screen
2. Independent unwinder with mechanical shaft controlled by magnetic powder brake
2. EPC device
3. Material feeding controlled by step motor or servo motor
4. Heat sealing heat cutting
5. Equipped with static electric elimination device
|
Model |
CP-1200FLB |
|
Length of bag making |
L:150-500mm |
|
L1:30-500mm |
|
|
Bag width making |
W:300-700mm |
|
Production speed |
50-100pcs/min |
|
Total power |
11KW |
|
Machine weight |
1800kg |
|
Machine dimesion |
5500X1550X1870mm |
|
Air compressor |
5HP |
1. Double-layer unfolding design.
2. Roller tension is controlled by magnetic powder brake
3. Up and down, Unfolding is equipped with automatic EPC correction device.
4. No material, cut off the automatic closing device.

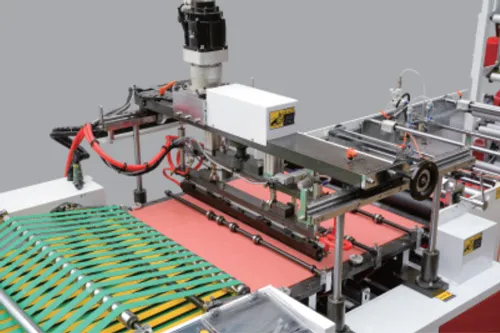

1. The color mark electric eye adopts German (LEUZE) photoelectric sensor, zero failure, accurate sealing and cutting size.
2. The bag feeding adopts Japanese Yaskawa servo motor drive, high-speed transportation and accurate positioning.
1. The color mark electric eye adopts German (LEUZE) photoelectric sensor, zero failure, accurate sealing and cutting size.
2. The bag feeding adopts Japanese Yaskawa servo motor drive, high-speed transportation and accurate positioning.

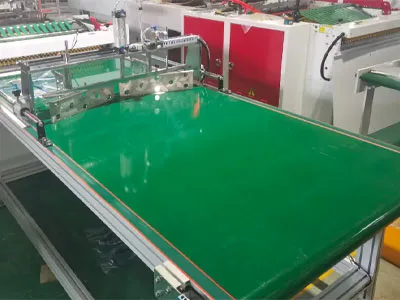

1. The collection station adopts automatic collection bag feeding (task-to-task model and continuous model)
2. When the bags reach a certain number, the collection station will move automatically and continue production.
3. The collection station is driven by a micromotor deceleration servo
