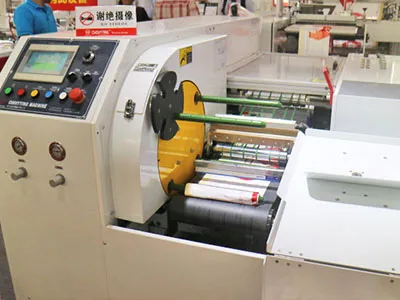

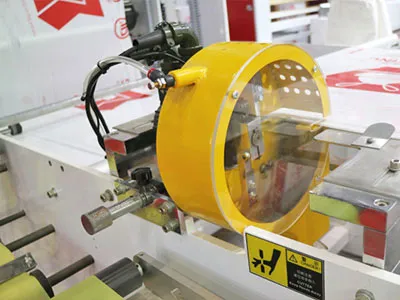

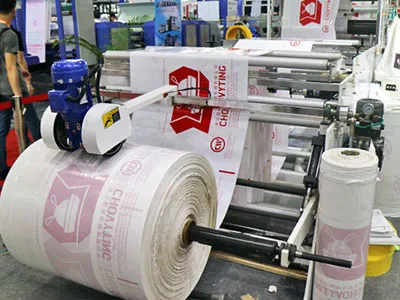

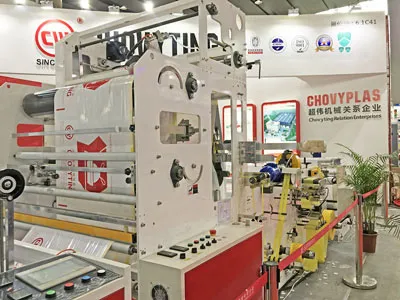

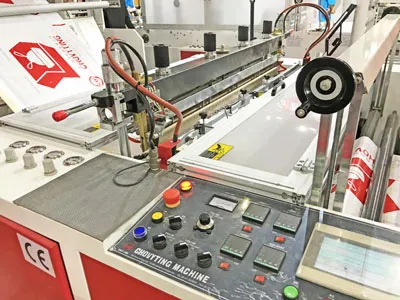

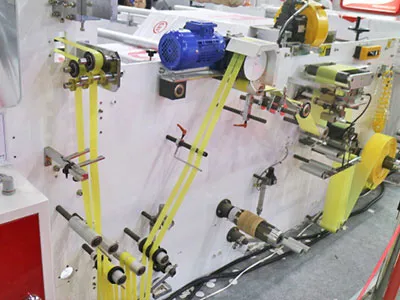

This machine is special for making peforation bag-on-roll bag, rewind with 4pcs servo motor, high speed bag making and non-stop roll exchanger design. Both can make overlap and perforation roll bag.
Overlap & Performation Bag-on-Roll
1.With 4pcs servo motor,
2.High speed bag making and non-stop roll exchanger design.
| Model | CP-I000PG+OR |
| Unwinder width | 1000mm |
| Unwinder diameter | Φ900mm (max.) |
| Height of bag making | 500-900mm |
| Width of bag making | 300-1000mm |
| Bag making speed | 100pcs/min |
| Line speed | 60m/min |
| Rewinding width | 300mm |
| Max.diameter of rewinding | Φ 130mm |
| Finished roll exchange times | 7 rolls/min (max.) |
| Film thickness | 0.025-0.06mm |
| Total power | About 21KW |
| Machine dimension[LxWxH] | 15000x2800x3000mm |
| Machine weight | 4500kg |
| Air compressor | 7.5HP (not included) |
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
