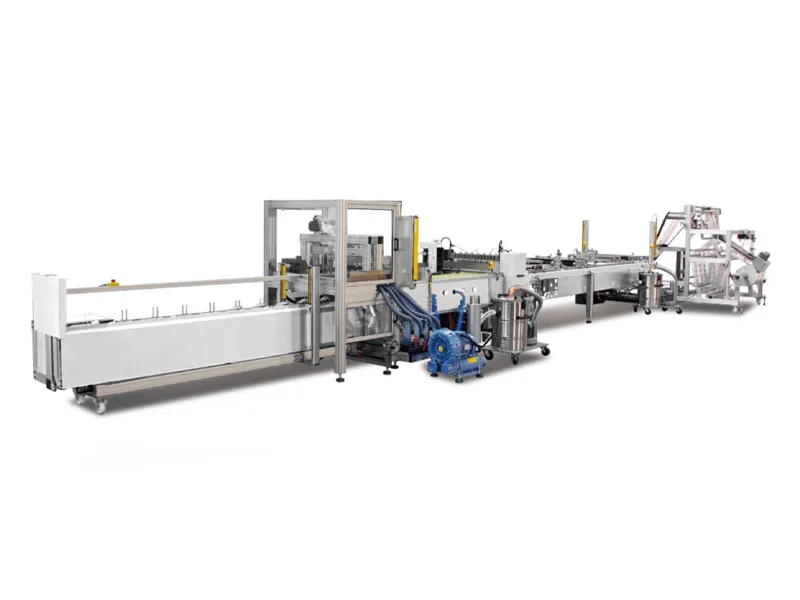

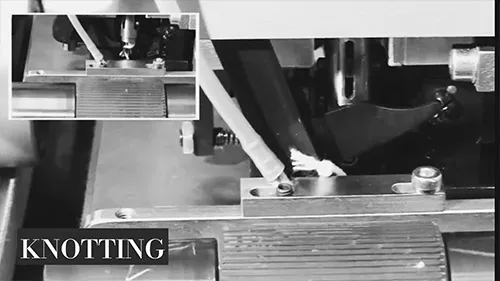

Model CW-800ATR is specially designed machine for producing pull cotton draw string bag with fully automatic knotting system. The automated knotting of cotton cords is the key system in the machine. Meanwhile wicket collecting system is available to be add to the standard machine for improve production capacity.
| Model | CP-800ATR | CP-800CRK |
| Working width | 90-600mm | 200-500 mm |
| Roll diameter | max.1.000mm | max.1.000mm |
| Diameter of Drawstring | Φ1.2-1.5mm | Φ3-6mm |
| Bag height (B) | 200-650mm | 250-650mm |
| Bottom fold (F) | 30-70mm | 30-100mm |
| Films | LDPE,BOPP | LDPE |
| Film thickness | 0.04-0.12mm | 0.05-0.1mm |
| Line Speed | max.40 m/min. | max.35 m/min. |
| Speed of bag making | max.100 cycles/min | max.60 cycles/min |
| Machine dimension | 12000x2000X1950mm | 10500X3500X1900mm |

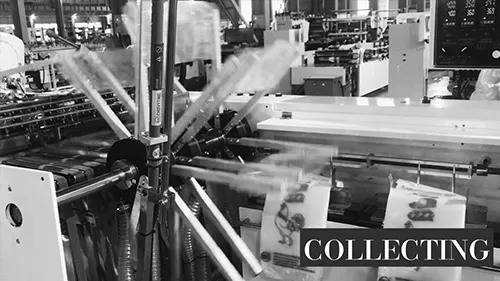

To save human labor cost of collecting bags & enables the machine to run at high speed.
The length of arms can be extended for wider bags by customization.
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
