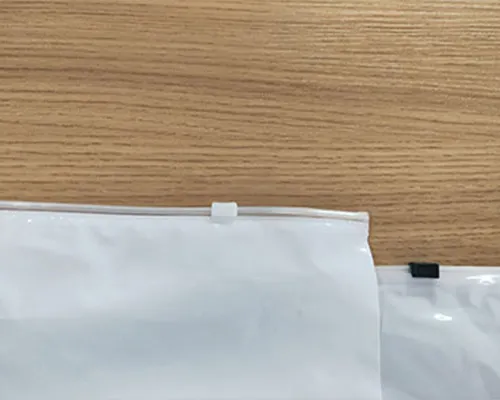

This is an automatic Side sealing bag making machine to seal plastic zipper reel to Plastic film, in order to form the zipper bags with or without slider head. Special design of PE zipper bag making machine, fully automatic produce,the operation with more simplify design.
Main Features
1. unwinding with air cylinder loading.
2. low friction top fold and bottom gusset device.
3. easy operation zipper heat sealing device.
4. heavy duty side seling knife,easy clean .
5. with multiterm automatic warming,automatic stop device.
6. new design liquid crystal screen, with 5 kinds of language choose.
Optional Equipment
1. handle puncher design.
2. double lines sealing knife and bottom sealing knife.
3. round bottom chicken device.
4. European style diaper device.
| Model | CP-80OSBD+ZP |
| Bag type | side seal |
| Bag height | 750mm |
| Bag width | 900mm |
| Speed of bag making | 100pcs/min |
| Total power | 15KW |
| Machine weight | 2800kg |
| Machine dimension (LxWxH) | 8000x2000x2000mm |
| Air compressor | 5HP |

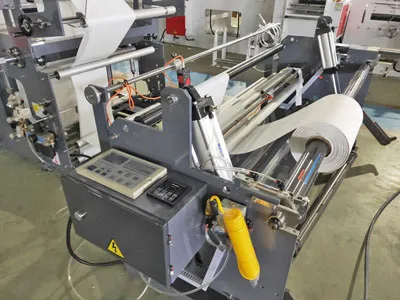

1.The max.diameter of the unwinder is 600mm, the unwinder shaft adopt plug-shaft
2.Unwinder with EPC device
3.Manual magnetic power tension control
1.Side sealing knife principal axis transmissionbelt cylinder lifting and down.
2.With water cycle cooling system.
3.With concealed style heating tube, temperature steady
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
