This machine is multi-function bag making machine. Fully automatic production, easily operation.
Main Features
1. Heavy-duty frame design, high-speed production is not vibration
2. Special sealing blade design, exchange quickly and easily
3. Feeding motor automatic control, trouble free operation.
Optional Equipment
1. Single sheet folding unit.
2. Top folding continuously sealing device
3. Jumbo roll automatic lifting device
4. Auto.collection device
5. Chicken bag puncher device
6. Sealing device (for producing DHL bag)
7. Perforation line device
8. OPP header bag (with pearlized film)
9. Adhesive tape adding device
| Model | CP-800SBD | |||
| Bag type | side seal | double seal | bottom seal | OPP bag |
| Bag height | 750mm | 750mm | 900mm | |
| Bag width | 900mm | 900mm | 750mm | |
| Speed of bag making | 180pcs/min | 140pcs/min | 120pcs/min | 150pcs/min |
| Total power | 8KW | |||
| Machine weight | 1500kg | |||
| Machine dimension (LxWxH) | 5000X1550X1870mm | |||
| Air compressor | 5HP | |||

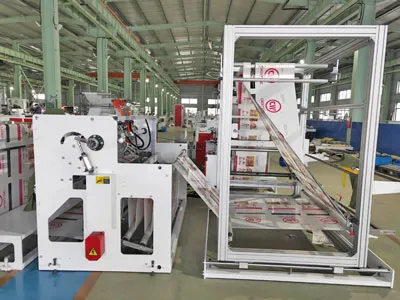

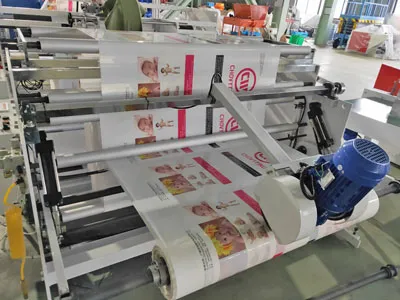

1.The max diameter of the unwinder is 600mm, the unwinder axle adopt plug-shaft.
2.Unwinder with EPC device. With photocell, Manual magnetic power tension control 2.5KG.
3.Feeding traction is controlled by AC motor, automatic adjust the speed.

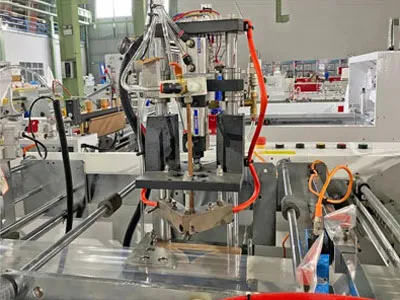

1.Heat sealing Chicken bag puncher device by air cylinder.
2.2 pcs hole punch from top of bag

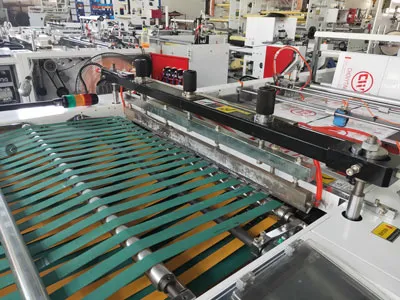

1. Side sealing knife with water cycle cooling system, principal axis transmission belt cylinder lifting and down.
2. Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3. Bottom sealing /side sealing knife, humanism structure design easy to cleaning.

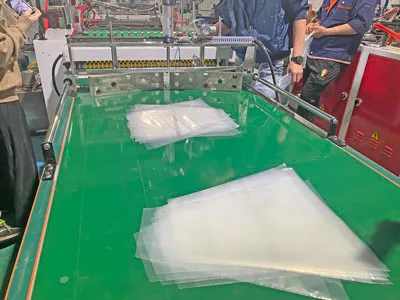

1. Collect table adopt automatic collecting bag feeding (intermission model and continuum model).
2. When the bag reach to a certainty quantity, collect table will move automatically, and continuo producing.
3. Collect table is driven by Micro-motor reducing servo.
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
