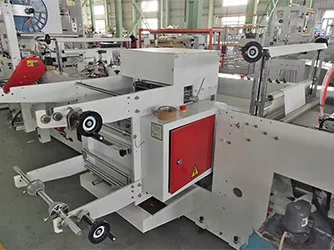

This machine has 2 functions (soft loop handle bag, die cut handle bag). It is coupled with machinery ,light ,electronic and pneumatic800LP high speed 2 function soft loop handle / die cut punching handle shopping bag making machine
Brief introduction
This machine has 2 functions (soft loop handle bag, die cut handle bag). It is coupled with machinery, light, electronic and pneumatic.
Optional
1.Single sheet film fold unit(hydraulic auto loading device)
2.Double sealing knife device
3.Bottom sealing knife device
| Model | CP-800LP |
| Length of bag-making (Height of bag) | 250-750mm |
| Width of bag-making | 250-600mm |
| Top-folding edge | 50-75mm |
| Bottom gusset | 20-70mm |
| Speed of bag-making | |
| Soft loop handle bag | 60pcs/min |
| Die cut handle bag | 80pcs/min |
| Total power | 10KW |
| Machine weight | 3200kg |
| Machine dimension[LxWxH] | 6.2x3.1x1.87m |
| Air compressor [not included] | 6HP |

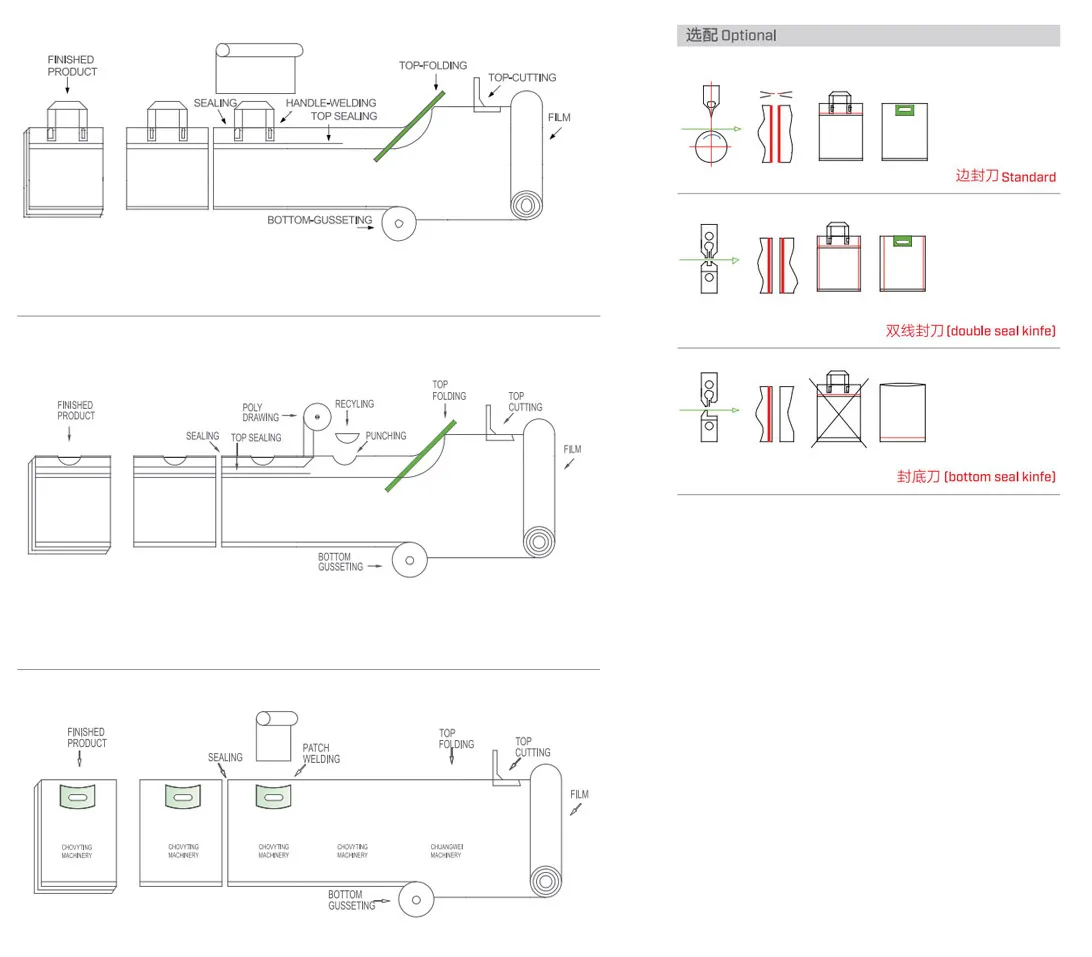

Machine schematic
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
