This machine has 2 functions (patch handle bag, die cut handle bag. It is coupled with machinery ,light ,electronic and pneumatic. CW-800SP Full automatic patch handle / die cut handle plastic shopping bag making machine
Brief introduction
This machine has 2 functions ( patch handle bag,die cut handle bag). It is coupled with machinery, light, electronic and pneumatic.
Including
1. side sealing knife
2. Folding unit
3.Automatic collect table
OPtional equipment
1.Single sheet film fold unit(hydraulic auto loading device)
2.Double sealing knife device
3.Bottom sealing knife device
4.Triangle folding device
| Model | CP-800SP |
| Length of bag-making (Height of bag) | 250-750mm |
| Width of bag-making | 250-600mm |
| Top-folding edge | 50-75mm |
| Bottom gusset | 20-70mm |
| Speed of bag-making | |
| Patch handle bag | 60pcs/min |
| Die cut handle bag | 80pcs/min |
| Total power | 10KW |
| Machine weight | 3200kg |
| Machine dimension[LxWxH] | 6x3.1x1.87m |
| Air compressor [not included] | 6HP |
Machine schematic

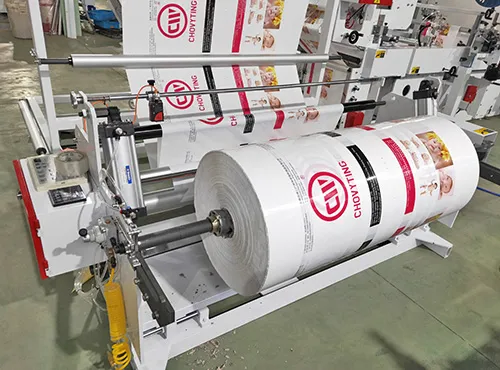

1. Unwinding adopt common loading , max diameter of raw rolling materialisφ600mm
2. Adopt magnetic powder tension control. Manual adjust the tension.
3. Unwinding shaft is heavy-chainplug axle

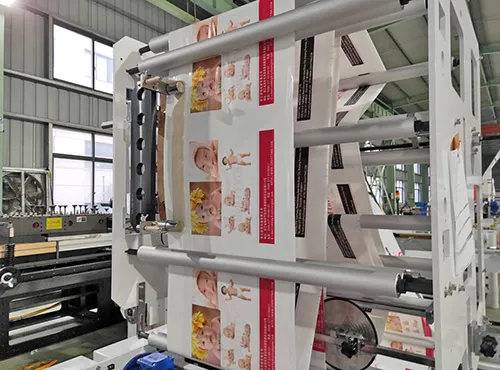

1. Top-folding continuously sealing, the width size of bag not be limited.
2. Inside heating wire sealing, which is suitable for full colors of bag.
3. Adopt import heat wire, steady warming, hard sealing

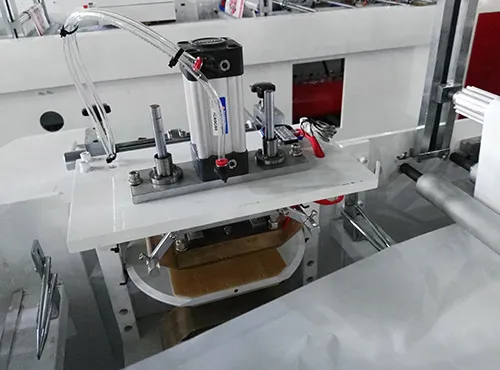

1. Turnabout cylinder control patch
2. With flying knife cutting fast
3. Special pattern sealing mould
4. Micro-motor driver patch go forward and back off
5. Base mould of patch device adopt whole steel plate
1. Turnabout cylinder control patch
2. With flying knife cutting fast
3. Special pattern sealing mould
4. Micro-motor driver patch go forward and back off
5. Base mould of patch device adopt whole steel plate

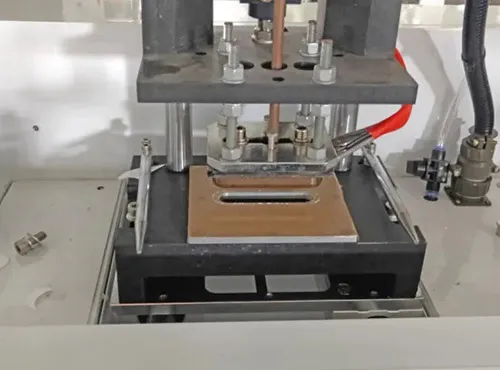

1. High hardness gear steel smooth pillar
2. Air outside waster film blower hopper
3. The whole style rotary 180 degree
4. High hardness alloy aluminium puncher base plate
1. High hardness gear steel smooth pillar
2. Air outside waster film blower hopper
3. The whole style rotary 180 degree
4. High hardness alloy aluminium puncher base plate

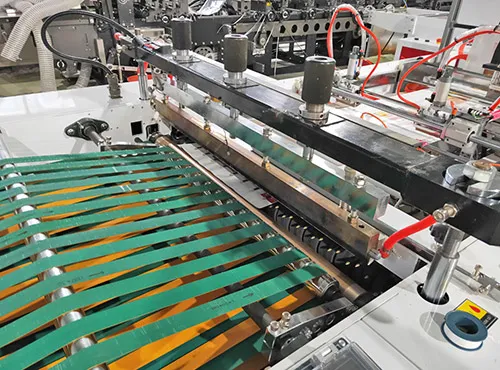

1.Side sealing knife with water cycle cooling system.
2.Side sealing knife adopt best of breed material, high temperature heating ametabolic.
3. Side sealing knife with concealed style heating tube, temperature steady

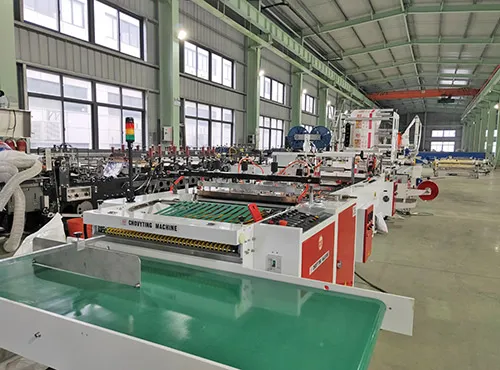

1.Collect table adopt automatic collecting bag feeding (intermission model and continuum model)
2.When the bag reach to a certainty quantity, collect table will move automatically, and continuo producing.
3.Collect table is driven by Micro-motor reducing servo
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
