CW-800NJT High Speed Automatic Plastic inside Glue Patch Handle carry handbag making machine manufacturer
Main Features

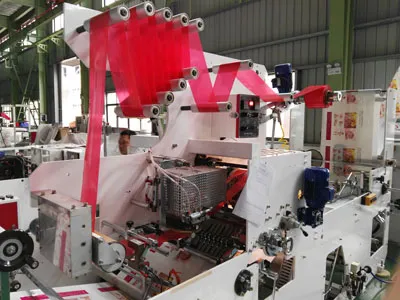

1. Flexible glue pasting patch film feeding system, fully automatic (PATENT)
2. Pre-sealing knife, heated on double sides and strong for fusing, to make the bags without deformation
3. The best quality of Italian side sealing knife, Heated to high temperatures not deformation
4.Newly design of sealing knife top lift and turn over system

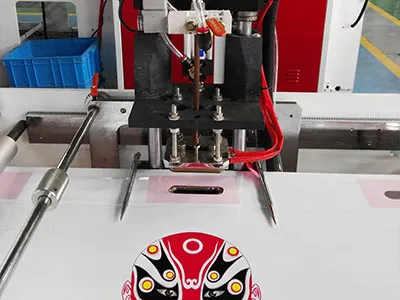

5.Its designed by heating punching and it’s easy to cut off, the waster is excluded automatically.
Optional Equipment
1. +W Wicketer type collect device
| Modle | CP-800NJT | CP-800NJT+W |
| Length of bag-making | 750mm | 750mm |
| Width of bag-making | 600mm | 600mm |
| Speed of bag-making | 80-130pcs/min | 100-180pcs/min |
| Line speed | 60m/min | 80m/min |
| Bottom gusset | 30-80mm | 30-80mm |
| Width of the patch film | 145mm | 145mm |
| Total Power | 16KW | 28.6KW |
| Machine Weight | 3500KG | 4350KG |
| Machine Dimension (LxWxH) | 11000 x1900 x2600mm | 14000 x1900 x2850mm |
| Air compressor (not included) | 6HP | 7.5HP |
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
