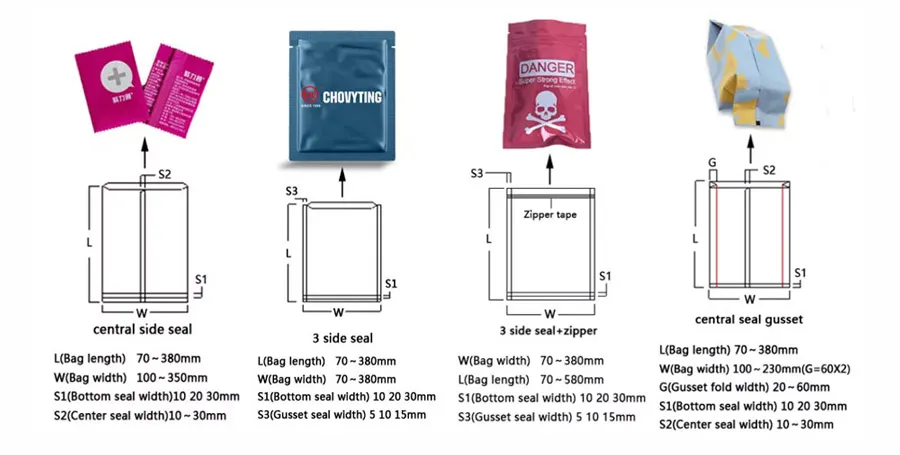

Economic type laminated film bag making machine, it is used for various kinds of laminated material, meanwhile, it also has side gusset of center sealing bag, can make four side sealing bag and five side sealing bag. (A Series don’t have zipper bag design)
Main Features
1. All of parameter display by touch screen.
2. It has EPC and double photocell traking from unwinding.
3. Super length size ,which has 6 times skip feeding design.
4. Automatic waste film rewinding unit.
Optional Equipment
1. Stand-up doy bag device.
2. Punching for handle.
3. Round angle puncher.
| L (Bag Making Length) | 50-420mmx N (Skip:n<6) |
| W (Bag Making Width) | 100-580mm |
| W1 (Single Line Width) | 75-580mm |
| S1 (BottomSeal Width) | 5-60mm |
| S2 (Vertical SealWidth) | 10-60mm |
| Air Compressor | 0.6mpa (6kgf/cm²) |
| Water Colling | About 15L/min |
| Unwinder Rolls Film Width | 1200mm |
| Unwinder Diameter of Roll | Φ800mm |
| Speed of Bag Making | |
| *3 Side Sealing Bag | 170pcs/min |
| *Line Speed | 40m/min |
| Dimension of Machine L*W*H | 11.8*1.9*1.96m (With Storage Function) |

CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
