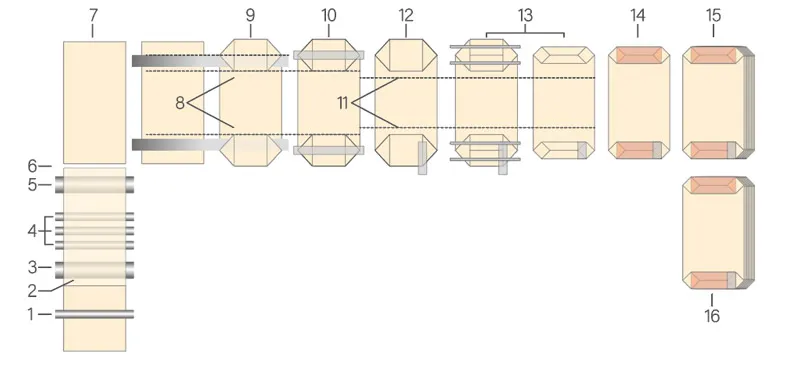

This equipment is used to produce square-bottomed valve pockets welded by hot air. The bag tube is cut to length, the tube is turned 90° to feed, the horns are opened to form, the valve port is welded by hot air, the bottom of the bag is folded and formed, and the tube is welded by hot air. A series of actions such as external reinforcement strips at both ends of the bottom of the bag, and output of finished products, realize bag making.
| Model | CW-600AVP |
| Bag Making Length | 450-910mm |
| Bag Making Width | 350-600mm |
| Bag Bottom Width | 80-180mm |
| Valve Length | 80-200mm |
| Production Speed | 100 pcs/min |
| Dimension of machine( L*W*H) | 13*8*2.3m |
CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
