CP-700IEB

Servo Drive FFS Tube Film Embossing & Gusset Rewinding Machine

Final Product
Please Choose
Select All
Shopping Bags
Garbage Bags
Shrink Film
Agriculture
Express Bags
Milk Bag
Industrial Packing Bag
Biodegardable Film & Bags
Others
Width
mm
Thickness
mm
Capacity Requirement
kg/hr
product-content

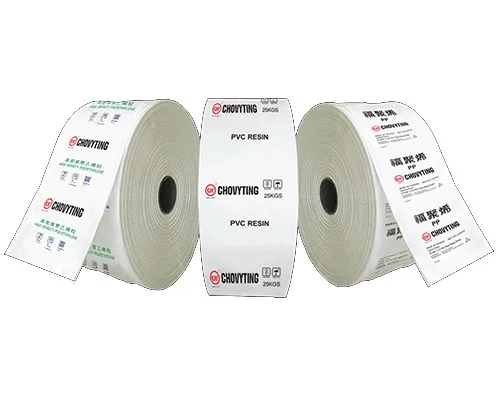

Sample
product-content
Sample Bag
product-content
Sample Bag

The Form, Fill, and Seal (FFS) packaging film designed to be reliable, simple, and cost effective, while offering manycustomization options.(FFS) packaging film offers advantages over premade bagging such as increased production speed, reduced per-bag cost, and increased flexibility in finished bag size. It also has the feature of preventing slipping in the pallet arrangement with its embossed structure.FFS is an ideal packaging solution for many different industries including petrochemical and plastic resins, agricultural, chemical, biomass, industrial manufacturing, pet food and livestock feed, lawn and garden. Products that may be packaged by these machines include resin pellets, wood pellets, salt, fertilizer, rocks and stone, chemicals, powders, spices and powders, dried foods, cement and slurries, and granular products.



Applications for FFS are for example

Food industry – for Salt, Sugar, Pasta PackagingConstruction industry – for chalk, plaster, Diatom oozeAgriculture – for soil packagingPetrochemicals -packing of granulate material like Polyethylene granules, master batches, chemicals etcHeavy duty sacks

pro-video
Parameter
Model CP-700IEB
Width Of Jumbo Roll 700mm
Diameter Of Jumbo Roll Φ1000mm
Diameter Of Rewind Φ1500mm
Rewind Mismatch Distance 2-100mm
Max Depth Of Side Gusset 40-100mm
Applicable Materials HDPE, LDPE and other tube materials
Material Thickness 0.04mm~ 0.3mm
Production Speed 150m/min
Total Power About 12.7KW
Weight Of Machine About 3500kg
Dimension Of Machine 8.42x1.45x2.7m
Detail drawing
detail-drawing-img

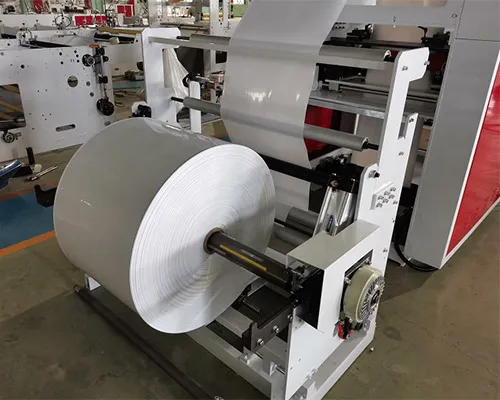

Penuamatic unwinder:
Suitable for jumbo roll diameter 900mm, width 700mm. weight 350kg.with automatic EPC for edge correction.with air shaft, automatic tension control.
detail-drawing-img

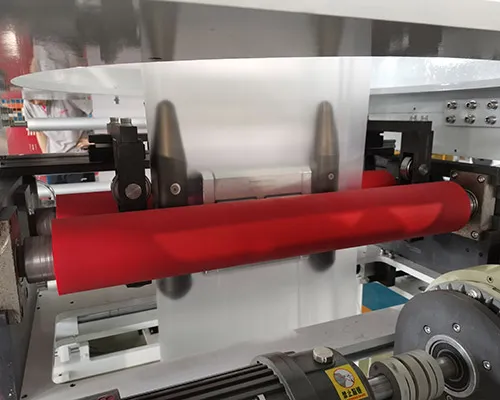

Embossing unit for anti-slip purpose:
From inside out embossing pattern, suitable for film thickness 0.04-0.3mm material.inline with rotary tower, for rotary the pattern.by AC motor independent control.
detail-drawing-img

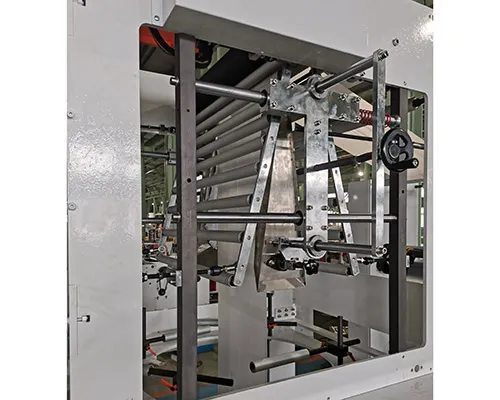

Gusseting unit:
Gusseting depth: 40-100mm each side.with meter counter & auto stop functionwith servo motor drive for traction.
detail-drawing-img
Rewinder unit:
With surface friction rewinding designwith 3″ & 6″ air shaft for exchangewith servo motor control , auto tension. synchronized speed with main machinewith hydraulic unloading system, max.affordable weight can be 300kg.
FAQ
Here is a list of questions and answers related to customization, service, and quality of Servo Drive FFS Tube Film Embossing & Gusset Rewinding Machine
01 . What Models of Bag Making Machines Does Chovyting Offer?

CHOVYTING plastic bag making machine mainly includes automatic bag making machine, semi-automatic bag making machine, flat bag making machine and side-seal bag making machine and so on many types, you can choose the right model according to the production demand.
