Fully Automatic Bottom Sealing Bag Making Machine By Flying Knife System

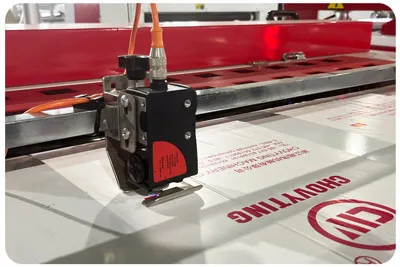

CHOVYPLAS's patented flying knife system offers three core advantages for superior bag production:
* High-Speed & Continuous Operation: Unlike traditional start-stop cutting, the flying knife cuts the film seamlessly while in motion. This eliminates idle time, dramatically increasing production speed and output for your business.

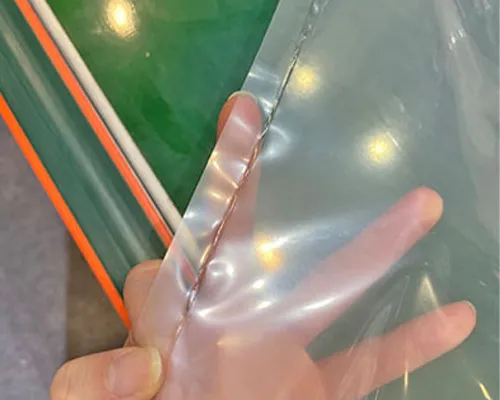

* Precision and Clean Seals: The system ensures every bag has a perfectly straight, clean, and consistent bottom seal and cut edge. This results in a professional, high-quality finish with minimal material waste.
* Enhanced Durability: Designed for heavy-duty use, our flying knife mechanism is built to last, reducing maintenance needs and machine downtime, which translates to higher long-term profitability.

* The CHOVYPLAS fully automatic machine is engineered for remarkable versatility. It efficiently processes a wide range of materials, including LDPE, HDPE, CPP, and biodegradable films. Our machines are easily adjustable to produce various bag sizes. The quick-change features allow for minimal downtime when switching between production jobs, making it an ideal solution for manufacturers with diverse client orders.

* At CHOVYPLAS, reliability is built into every machine through robust components, rigorous testing, and a user-centric design focused on ease of operation and maintenance. We back our equipment with a comprehensive global support network. This includes: * Detailed Installation Guidance: Remote or on-site assistance to get you running quickly. * Readily Available Spare Parts: We ensure critical parts like the flying knife blades and heating elements are in stock for fast shipment. * Responsive Technical Support: Our expert team is available to troubleshoot issues remotely, minimizing potential disruptions to your production line.

The fundamental advantage is continuous high-speed production. Traditional mechanisms must stop the film feed for each cut, creating a cycle of acceleration and deceleration that limits speed and causes wear. The CHOVYPLAS Flying Knife System moves synchronously with the film, performing the cut seamlessly in-motion. This eliminates inertia, allowing our Fully Automatic Bottom Sealing Bag Making Machine to achieve production speeds up to 30% higher while delivering a cleaner, more consistent cut edge and reducing mechanical stress on the drive system.

Perfect alignment is achieved through our patented servo-synchronization technology. A high-resolution encoder tracks the film position with precision, while a dedicated servo motor drives the flying knife. The PLC continuously calculates and adjusts the knife's path in real-time to match the film speed and the pre-set bag length. This closed-loop system guarantees that the cut occurs at the exact center of the bottom seal, producing a bag with a symmetrical, high-value aesthetic, batch after batch.

While maximum speed depends on bag size and material, CHOVYPLAS Fully Automatic Bottom Sealing Bag Making Machines are engineered to consistently operate at industry-leading speeds of up to 180 cycles per minute. Crucially, our machines maintain this performance through a robust temperature control system (±1°C stability) and a heavy-duty flying knife assembly that prevents deflection at high speeds. We provide verified performance data during factory acceptance tests, so you can invest with confidence in achieving both high output and unwavering quality.

Absolutely. Versatility is a cornerstone of our design. The CHOVYPLAS machine is equipped with customizable sealing jaws and temperature zones to perfectly suit everything from standard LDPE/ HDPE to demanding laminated films (such as BOPP/PE, PET/PE) and co-extruded materials. Our advanced tension control system ensures wrinkle-free feeding of sensitive films, while the flying knife's blade angle and pressure are adjustable for a clean cut through various material thicknesses and compositions.

We've prioritized operational simplicity. The machine features an intuitive HMI (Human-Machine Interface) with a multilingual touchscreen. Operators can input and save bag parameters (length, seal time, temperature) with a few taps. More importantly, the system includes a comprehensive self-diagnostic alarm function that visually pinpoints issues like overheating, low air pressure, or communication errors. This drastically reduces troubleshooting time and dependency on highly specialized technicians, empowering your team to maintain high productivity.

CHOVYPLAS is committed to sustainable innovation. Our machines utilize servo motors for all main drives (film pull, flying knife, sealing jaws), which consume energy only during movement cycles, unlike constantly running asynchronous motors. Additionally, high-efficiency ceramic heaters with PID insulation minimize heat loss. While consumption varies, our energy-optimized design typically results in up to 40% lower power usage compared to conventional machines, a saving that directly impacts your operational costs and environmental footprint.

Your success is our ultimate metric. When you partner with CHOVYPLAS, you gain more than a machine; you gain a support ecosystem:
Dedicated Process Engineering: We provide expert advice on material selection and machine settings to optimize your output for specific applications.
Global Spare Parts Guarantee: A global network ensures critical spare parts are available for fast shipment to minimize downtime.
Proactive Remote Monitoring (Optional): We can offer systems that allow for remote health checks and preventive maintenance alerts.
Comprehensive Warranty & On-site Training: We ensure your team is fully operational and supported throughout the machine's lifecycle.
