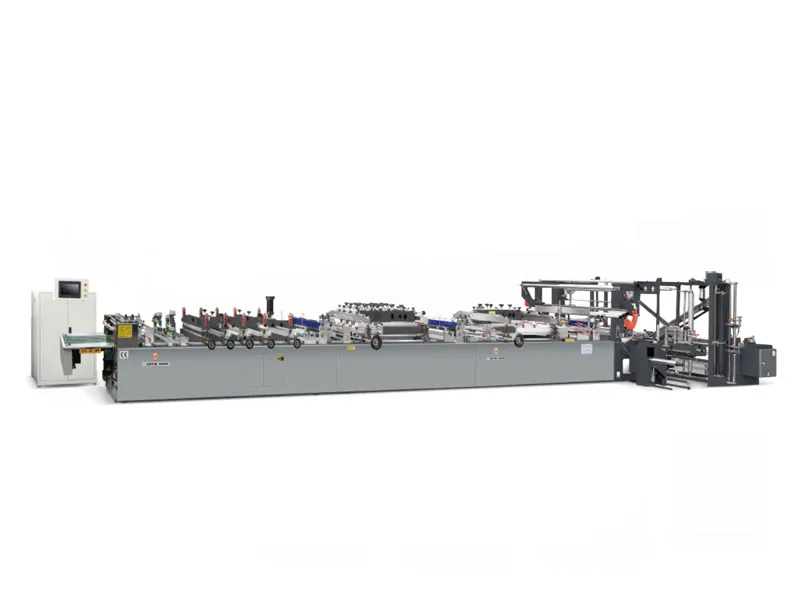

Fully Automatic Multifunction Laminated Bag Making Machine

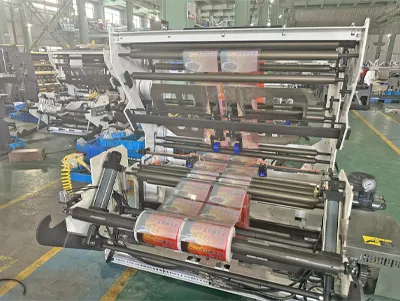

Pneumatic expansion part:

The pneumatic expansion part features a robust design supporting a maximum roll diameter of Φ800mm, enabling efficient handling of large material rolls. This component utilizes advanced pneumatic technology to ensure secure and uniform gripping of the core, minimizing material slippage during unwinding. Compared to conventional mechanical expansion systems, it offers 30% faster roll changeover times and maintains consistent tension control even with varying roll weights. The integration of precision pressure regulators allows for seamless adjustment between different material types, from thin films to heavy-duty laminates, enhancing overall production flexibility.

Central seal molding unit:

Equipped with dual servo drives, the central seal molding unit delivers exceptional precision and control during the sealing process. This dual-drive system ensures synchronized movement of sealing elements, resulting in consistent seal quality across the entire bag width. The unit's advanced motion control algorithm reduces positioning errors to ±0.1mm, significantly improving seal integrity compared to single-servo configurations. With a maximum operating speed of 170 cycles per minute, it outperforms traditional hydraulic systems by 40% in terms of acceleration and deceleration response, making it ideal for high-speed production lines.

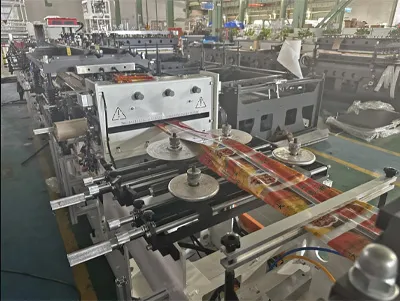

Side gusset section:

The side gusset section boasts an impressive symmetry accuracy of ±0.5mm, ensuring perfectly aligned gussets for stand-up pouch applications. This precision is achieved through the integration of high-resolution linear encoders and servo-controlled positioning systems. The section's modular design allows for quick changeover between different gusset widths, reducing setup time by up to 50% compared to conventional fixed gusset systems. Its robust construction handles material thicknesses from 0.08mm to 0.3mm, providing versatility for various packaging requirements while maintaining consistent quality.

Central sealing strip:

Utilizing ultrasonic welding technology, the central sealing strip delivers superior bond strength and airtightness. This advanced welding method generates consistent seal integrity across different material combinations, including difficult-to-seal laminates. The ultrasonic system operates at a frequency of 20kHz, ensuring minimal heat affect zone and reducing material distortion. Compared to traditional heat sealing methods, it consumes 35% less energy and achieves 20% higher seal strength, making it ideal for barrier packaging applications requiring extended shelf life.

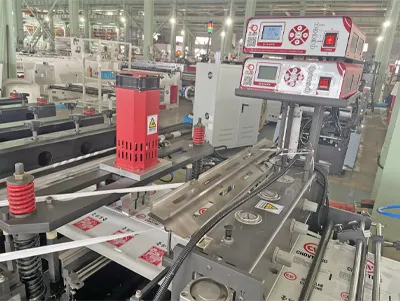

Ultrasonic zipper pressing:

The ultrasonic zipper pressing component offers exceptional positioning accuracy of ±0.1mm, ensuring precise alignment of zippers with the pouch body. This high precision is maintained even at maximum production speeds, thanks to the integration of vision systems and servo-driven positioning. The ultrasonic pressing technology creates a secure, consistent bond between the zipper and pouch material, eliminating common issues such as partial bonding or material distortion. The system's quick-change tooling design allows for zipper size modifications in under 10 minutes, significantly reducing downtime during product changeovers.

The third insert vertical bag picture:

This vertical bag inserting component achieves an impressive forming speed of 180 cycles per minute, significantly enhancing production throughput for vertical bag applications. It offers exceptional versatility with compatibility for bag widths ranging from 30mm to 120mm and handles material thicknesses from 0.08mm to 0.4mm, accommodating various packaging requirements. The precision-engineered mechanical structure ensures consistent bag formation even at maximum operating speeds.

Handle punch with bracket:

The handle punch with bracket accommodates a wide range of hole diameters from Φ10mm to Φ30mm, providing versatility for various bag handle designs. This component features a quick-change punch system that allows for tooling更换 in under 5 minutes, minimizing production interruptions. The precision-ground punch and die sets ensure clean, burr-free holes even in thick laminated materials. The bracket's robust construction maintains positional accuracy within ±0.3mm, ensuring consistent handle placement across production runs, which is crucial for automated packaging line integration.

Photovoltaic Cells for Data Management in Italy:

The photovoltaic cells for data management feature an ultra-low power consumption design of ≤15W, ensuring efficient energy usage for continuous operation. With an exceptional data acquisition accuracy of ±0.5%, the system provides reliable monitoring of production parameters throughout the manufacturing process. The IP65 protection rating ensures reliable performance in industrial environments with varying temperature and humidity conditions, making it suitable for factory floor installations.

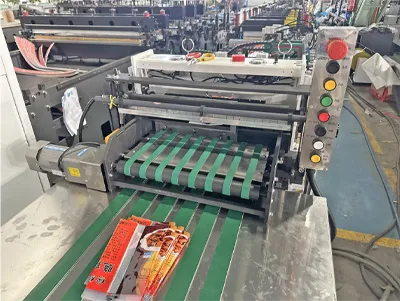

Cutting and collecting tables:

The cutting and collecting tables operate at an impressive speed of 170 cuts per minute, making them suitable for high-volume production environments. The cutting system utilizes precision-guided blades with micro-adjustment capabilities, ensuring clean, accurate cuts across various material thicknesses. The collecting table features an intelligent conveyor system with adjustable speed and orientation controls, allowing for efficient stacking and handling of finished products. Integrated sensors detect and reject defective bags, ensuring only quality products reach the downstream packaging process. The tables' modular design facilitates easy integration with auxiliary equipment such as date coders and quality inspection systems.
